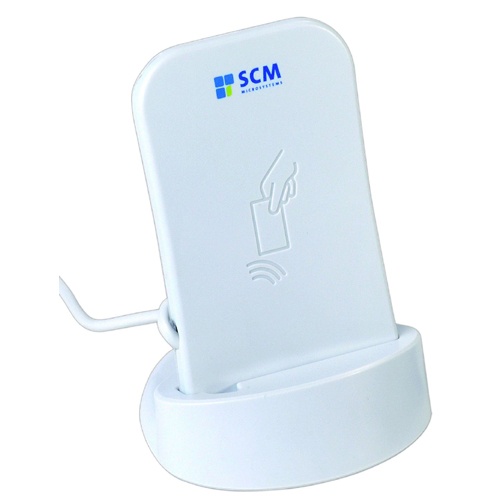

USB NFC Reader




USB NFC Reader

With its combination of a modern slim design and its state of the art multi-protocol feature set, SCL010 is the perfect desktop reader choice to support various contactless applications such as electronic ID, payment & public transportation schemes and to interact with NFC-enabled devices. As for all SCM Microsystems products, SCL010 is designed to offer best in class interoperability with various formats of tokens: cards, dongles, watches or NFC mobile phones.

Technical Information

  • Media Support:
Smart Card

  • Interfaces:

Physical Characteristics
  • Dimensions:
0.31" Height x 2.56" Width x 4.33" Length
  • Weight (Approximate):
2.47 oz

Business Description: SCM Microsystems is a leading supplier of solutions that open the Digital World by enabling people to conveniently access digital content and services. The company develops, markets and sells the industry’s broadest range of smart card readers and terminal technology for secure PC, network and physical access and digital media readers for transfer of digital content to OEM customers in the government, financial, enterprise, consumer electronics, health care and photographic equipment markets worldwide.
Official Website:

RFID To Barcode Project

RFID To Barcode Project.

In This Project we want to use RFID tag to barcode system.
RFID to barcode project will received data form tag then change to TTL Barcode signal and RS-232 Option and PS/2 Option and USB Option.
เพื่อ ระบบนำ ระบบ RFID มาใช้ร่วมกับ ระบบ BARCODE ได้ โดยรับสัญญาณจาก RFID TAG โดย RFID Module แล้วนำมาแปลงเป็นสัญญาณ Barcode สัญญาณ Output ที่ออกมาจะเสมือนเป็น สัญญาณ Barcode ซึ่งสามารถนำไปใช้งานกับ Barcode เดิมได้ทันที

Technology : NXP Mifare Standard
Frequency : 13.56 MHz
ISO Std. : ISO14443A
TAG Support : Mifare ultralight, Mifare1K, Maifare 4K
Active Range : 10 cm. with built-in Antenna
Barcode Output : TTL 5 V.
PS/2 Connector Output
USB Type B Connector Output
RS-232 DB-9 pin Connector Output
Power Supply : 5V.DC.

MCU :  PIC18F4550  SMD TQFP-44
DIP SW 2 bit for select output port
2 LED Status

Can set key and Data Block to read. ( in picture show debug monitor port for RFID to Barcode port )
TTL output ( same barcode signal form barcode reader )
RS-232 Output
PS/2 Output
USB Output ( HID complaint  So you can open Text edit software to read data such as MS word or Notepad )

UHF Long Range RFID


MR6034E UHF RFID reader is base on generation 1(MR6034A)product improved generation 2 RFID reader,This reader compatible many protocol、separate type design、connect with 4 antenna、fast reading、multi tag identify、Industry protection grade design etc. This reader are widely use in various RFID system,reference application as below:
1. Logistics and warehouse Management: Goods flow, warehouse management, and the flowing management of mail, parcel, luggage.
2.  Intelligent parking Management :Parking management and automatic charge
3.  Productive lines Management: Production process fixed Identify
4.  Product counterfeit-proof inspection: Using memory’s write-protect functions inside tags, and identifying with true-false of products
5. Other fields: Used widely in club management, library, student’s school, consumption management, time management, dinner management, pool management
Reader characteristic:
1. Special Anti collision algorithm, high efficient of multi-tag identify capability;
2. Four separate transmit/receive antenna to make more wide of area in the application;
3. Compatible ISO18000-6B and ISO18000-6C(EPC-GEN2) protocol standard
4. Read/Write tag capability:read >12m, write is 60% of read reading(depend on different tag);
5.  Reader support multi tag identify、single tag read、tag write、lock、and Kill tag etc.

Technical parameters
Standard ISM 902~928MHz and ISM 865~868MHz, other frequency available

Operation Mode
RF Power
0~30dBm,software programmable
Reading Speed
Software  Programmable,Average Reading per 64Bits:<6ms
Reading Mode
Timing or Touch,Software  Programmable
Data Ports
Standard: RS485,RS232,RJ45(TCP/IP);software programmable
Output Port
4 Team outport (can control output high/low level)
Reading Range
Depends on antenna gain, when connect with 12dbi antenna, the reading distance is about 12m
Reading Clue
Buzzer and LED
one~four Antenna, TNC connector
Power Supply
DC+9V (supply AC/DC power adapter)
2 .7Kg
Operation Temp

OTR318 Handheld RFID Reader/Writer

OTR318 Handheld RFID Reader/Writer

orangeTags is pleased to introduce the OTR318, a high frequency (13.56MHz) handheld reader/writer designed to address a wide array of HF applications including cashless payments, secure transactions, access control, product verification, and item level tracking in supply chain applications.

The OTR318 multi-protocol handheld RFID reader/writer has been cost effectively designed in a compact yet powerful form factor that is not only lightweight but also durable with a comfortable feel and stylish outlook.

OTR318 supports contact smart card protocol ISO 7816 and also secure, encrypted applications using ISO 14443 Type A/B.

32-bit ARM RISC CPU32
128x64 dot, EL backlight,
16x8 lines ASCII Characters (8x4 lines Chinese Characters)
FLASH Memory: 16Mbit (supports up to 64Mbits)
DRAM: 16Mbit
16 keys with backlight. 1 Jog Dialer
Contact Interface
ISO7816 (8 pin full function) contact card interface.
SAM Card Socket (optional).
Compatible with T=0/T=1 protocol
Contactless Interface
Communication Interface
1 x RS232, 1 x IrDA
Add-on Options
GPRS multislot class 10 DL:85.6kbps UL:42.8kbps
• Barcode
• Fingerprint
850mAH Rechargable Lithium Battery
Operating Temperature
-20°C to +50°C
Operating Humidity
45%RH to 85%RH (non-condensing)
Operating Power
Average < 0.5W, Max < 3.5W
L154 x W67 x H30 mm
Software Development Kit

ACR122L VisualVantage NFC Reader with LCD

ACR122L VisualVantage NFC Reader with LCD
For richer user interaction in contactless applications

ACR122L is a serial interface NFC contactless reader with LCD. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 NFC standard, and supports ISO 14443 Type A and B cards, Mifare, FeliCa and NFC technologies, including all 4 types of NFC tags and all 3 modes – reader, peer-to-peer and card emulation modes.
ACR122L is a plug-and-play device that does not require any driver installation. It comes with 4 LEDs, a buzzer and an LCD, which both provide users with a clear indication of the reader's status. The 2-line graphic LCD has multiple language support, including language support for Chinese, English, Japanese and some European languages. It allows interactive operation, such as scrolling up and down, left and right, etc. Moreover, it is equipped with three built-in SAM slots for enhanced security in contactless operations.
The reader can read and write more quickly and efficiently by using up to 424 Kbps of tag access. It also has a proximity operating distance of up to 50 mm, depending on the type of tag in use. Further, its built-in anti-collision feature and direct card type polling commands ensure a smooth operation, allowing the device to access only one card, even in cases where multiple cards are present and detectable.
Typical applications of ACR122L include e-payment, loyalty programs and access control.
 ACR122L Standard Features:
·         Serial RS232 Interface
·         7V DC for power supply (UK plug adaptor by default and VDE plug on request)
·         CCID-like frame format (Binary format)
·         Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
·         Support for ISO 14443 Part 4 Type A and B cards, Mifare, FeliCa and all 4 types of NFC (ISO/IEC 18092) tags
·         Support for new Mifare Ultralight C, Mifare Plus and DESFire EV1
·         Support for all 3 modes of NFC: reader, card emulation and peer-to-peer modes
·         Builti-in anti-collision feature (only 1 tag is accessed at any time)
·         Selective card polling capability (especially useful when multiple cards are presented)
·         2-line graphic LCD with interactive interoperability (scroll up and down, left and right, etc.) and multi-language support (Chinese, English, Japanese and some European languages)
·         Three ISO 7816-compliant SAM slots
·         Four User-controllable LEDs
·         User-controllable buzzer
 Typical Applications:
·         e-Government
·         e-Banking  and e-Payment
·         e-Healthcare
·         Transportation
·         Network Security
·         Access Control
·         Loyalty Program
 Technical Specifications:
Main Body: 136.66 mm (L) x 88.66 mm (W) x 19.00 mm (H); With Stand: 158.33 mm (L) x 95.00 mm (W) x 95.00 mm (H)
Main Body: 200 g; With Stand: 600 g
Serial RS232
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
Supply Current
200 mA (maximum); 50 mA (standby); 100 mA (normal)
Operating Temperature
0 - 50 °C
Operating System Support
·         Windows 98, ME, 2000, XP, Vista, 7, Server 2003, Server 2008, Server 2008 R2
·         Windows CE 5.0
·         Linux, Mac

ACR122 NFC Contactless Smart Card Reader

ACR122 NFC Contactless Smart Card Reader
The World’s First NFC Card Reader compliant to CCID Standard
The ACR122 is a PC-linked Contacless Smart Card Reader/Writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only Mifare®, ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
The ACR122 is a USB Plug and Play device with the CCID compliance. It is ideal for both secure personal identity verification and online micro-payment transactions. Typical applications of the ACR122 reader include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
By making use of up to 212 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122 can read and write faster and more efficiently. The proximity operating distance of ACR122 is up to 5 cm, depending on the type of contactless tag in use. An RF boaster can be added on customization requests to extend the distance.
In order to increase the security level, the ACR122 can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122 is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.
With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122.

 ACR122 reader standard features:
  • USB Full Speed (12 Mbps)
  • USB PnP
  • Bi-Color LED
  • Built-in Antenna
  • NFC Reader
    • ISO/IEC18092 (NFC) compliant
    • NFC Tags Access Speed = 212 kbps
  • Contactless Smart Card Reader
  • CCID Standard
  • CE and FCC Certificated
  • RoHS Compliant
  • User Controllable Buzzer (optional)
  • SAM Socket (optional)
 Typical applications:
  • Home Banking and Home Shopping
  • E-commerce
  • Checking the balance of electronic purses
  • Network access control
  • Customer Loyalty Program
  • Identification and Authentication
  • Ticketing
  • Online gaming
  • Parking and toll collection
  • Automatic Fare Collection
  • Public Transportation Terminals
  • Physical Access Control
  • Time attendance
  • Vending machines
  • Contactless public phones
  • Logistics and supply chain management
 Technical Specifications:
98 mm (L) x 65 mm (W) x 12.8 mm (H)
70 grams
USB Full Speed
Operating Distance
<= 50mm
Supply Voltage
Regulated 5V DC
Supply Current
200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature
Operating Frequency
13.56 MHz
ISO14443 1-4, PC/SC, CE, FCC, RoHS Compliant
Operating System Support
Windows 2000, XP 32, XP64, Vista 32 and Vista 64

RFID Warehousing Logistics Management

RFID Warehousing logistics management

System Introduction
Currently RFID technology is the area of the supply chain brought about a great change, to identify distance, rapid and difficult to damage, such as bar code capacity unmatched advantage, simplifying complex workflows, to effectively improve supply chain efficiency and transparency
Pallet supply chain are the most basic is the most important cargo units, it has been widely used in the production, warehousing, logistics and retail supply chain in all aspect. Shenzhen HUC Technology Co., Ltd. logistics flow pallet RFID solutions are designed for practical application of supply chain design

System Composition
Tray electronic tags, readers, antennas, mobile reading and writing equipment, management software Backgrounds

System Flow
A. Finished product storage boxes - with the electronic tag to enter the empty tray pallet entrance equipment by reading and writing of electronic tags to read and write tests to ensure that performance standards for the electronic tag to enter the circulation. Barcode scanning system for inspection of finished goods qualified me to sweep the bar code, fitted crib, reading and writing compressed will handle the entire cargo pallet barcode write electronic tag information, the implementation of bar code associated with the tag and information to a central management system
B. Aspect tray storage boxes to change or fragmented --- Terminals assembled using mobile RFID read-write device to adjust the data boxes after the re-associated with the tag, write the new tag information, update the central database synchronization
C. Tray out of the Treasury through the fixed RFID reader equipment and antennas buried electronic tag information collected and uploaded to a central management system, the system will verify the data extract barcode information to form boxes, and a dozen achieve two commercial arrival sweep scanning system docking
D. Distribution Center receiving tray in the reading area to stay 2-3 seconds to complete the entire cargo tray sweep of the code, without unstacking single sweep code re-loaded pile
4. System advantages
The program using passive electronic tag, long life, maintenance-free, unique design and can be embedded in a good quality plastic pallets, it is not easy in the tray during transport by collisions, wear and tear. In addition, the electronic tag rewritable data will help resolve the cargo tray adjust, assembled, such as warehousing and logistics questions, tags can be reused, saving the user significant cost
System achieve long-range identification, reading and writing fast and reliable, able to adapt to dynamic running conveyor belt to read and adapt to cigarette manufacturers and other industrial production environment (pieces of the smoke stack), has good anti-interference ability of metal, metal cigarette can be overcome foil packaging to identify the impact of RFID to meet the needs of modern logistics
Deal with information in the tags used in advanced data compression technology to enable electronic loading tray tags carry information (data packets), just scanning tray once the electronic tag information to understand items, remove the tray down tray and reload the necessary human material, to save time, reduce the error rate and probability of damage to goods, realize faster and more accurate inventory, improve the overall transparency of enterprise logistics
5. Effective implementation of the system
The program using long-distance RFID technology, has greatly improved the storage yard sweep speed and accuracy, improve the operating efficiency of the logistics to address the demolition trays, tray loading brought about by increased labor costs, on-site control problem difficulty. System in the logistics aspect of the successful application of the tobacco industry for the whole area of logistics application of RFID technology summed up the experience, laid the foundation, set a good example.


(1)成品货箱入库——带电子标签的空托盘进入托盘入口,由读写设备对电子标签进行读写测试,保证性能达到标准的电 标签进入流通环节。条码扫描系统对检验合格的成品货箱上的条码进行扫码,装垛,读写器将经过压缩处理的整个托盘货箱条码信息写入电子标签中,实现条码与 标签的关联,并将信息传给中央管理系统
