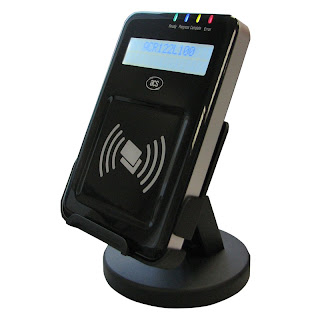

ACR122L VisualVantage NFC Reader with LCD









ACR122L VisualVantage NFC Reader with LCD
For richer user interaction in contactless applications

ACR122L is a serial interface NFC contactless reader with LCD. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 NFC standard, and supports ISO 14443 Type A and B cards, Mifare, FeliCa and NFC technologies, including all 4 types of NFC tags and all 3 modes – reader, peer-to-peer and card emulation modes.
ACR122L is a plug-and-play device that does not require any driver installation. It comes with 4 LEDs, a buzzer and an LCD, which both provide users with a clear indication of the reader's status. The 2-line graphic LCD has multiple language support, including language support for Chinese, English, Japanese and some European languages. It allows interactive operation, such as scrolling up and down, left and right, etc. Moreover, it is equipped with three built-in SAM slots for enhanced security in contactless operations.
The reader can read and write more quickly and efficiently by using up to 424 Kbps of tag access. It also has a proximity operating distance of up to 50 mm, depending on the type of tag in use. Further, its built-in anti-collision feature and direct card type polling commands ensure a smooth operation, allowing the device to access only one card, even in cases where multiple cards are present and detectable.
Typical applications of ACR122L include e-payment, loyalty programs and access control.
 ACR122L Standard Features:
·         Serial RS232 Interface
·         7V DC for power supply (UK plug adaptor by default and VDE plug on request)
·         CCID-like frame format (Binary format)
·         Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
·         Support for ISO 14443 Part 4 Type A and B cards, Mifare, FeliCa and all 4 types of NFC (ISO/IEC 18092) tags
·         Support for new Mifare Ultralight C, Mifare Plus and DESFire EV1
·         Support for all 3 modes of NFC: reader, card emulation and peer-to-peer modes
·         Builti-in anti-collision feature (only 1 tag is accessed at any time)
·         Selective card polling capability (especially useful when multiple cards are presented)
·         2-line graphic LCD with interactive interoperability (scroll up and down, left and right, etc.) and multi-language support (Chinese, English, Japanese and some European languages)
·         Three ISO 7816-compliant SAM slots
·         Four User-controllable LEDs
·         User-controllable buzzer
 Typical Applications:
·         e-Government
·         e-Banking  and e-Payment
·         e-Healthcare
·         Transportation
·         Network Security
·         Access Control
·         Loyalty Program
 Technical Specifications:
Dimensions
Main Body: 136.66 mm (L) x 88.66 mm (W) x 19.00 mm (H); With Stand: 158.33 mm (L) x 95.00 mm (W) x 95.00 mm (H)
Weight
Main Body: 200 g; With Stand: 600 g
Interface
Serial RS232
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
7V DC
Supply Current
200 mA (maximum); 50 mA (standby); 100 mA (normal)
Operating Temperature
0 - 50 °C
Compliance/Certifications
CE, FCC, VCCI, RoHS
Operating System Support
·         Windows 98, ME, 2000, XP, Vista, 7, Server 2003, Server 2008, Server 2008 R2
·         Windows CE 5.0
·         Linux, Mac
